FSA Sealed Bearing Headset

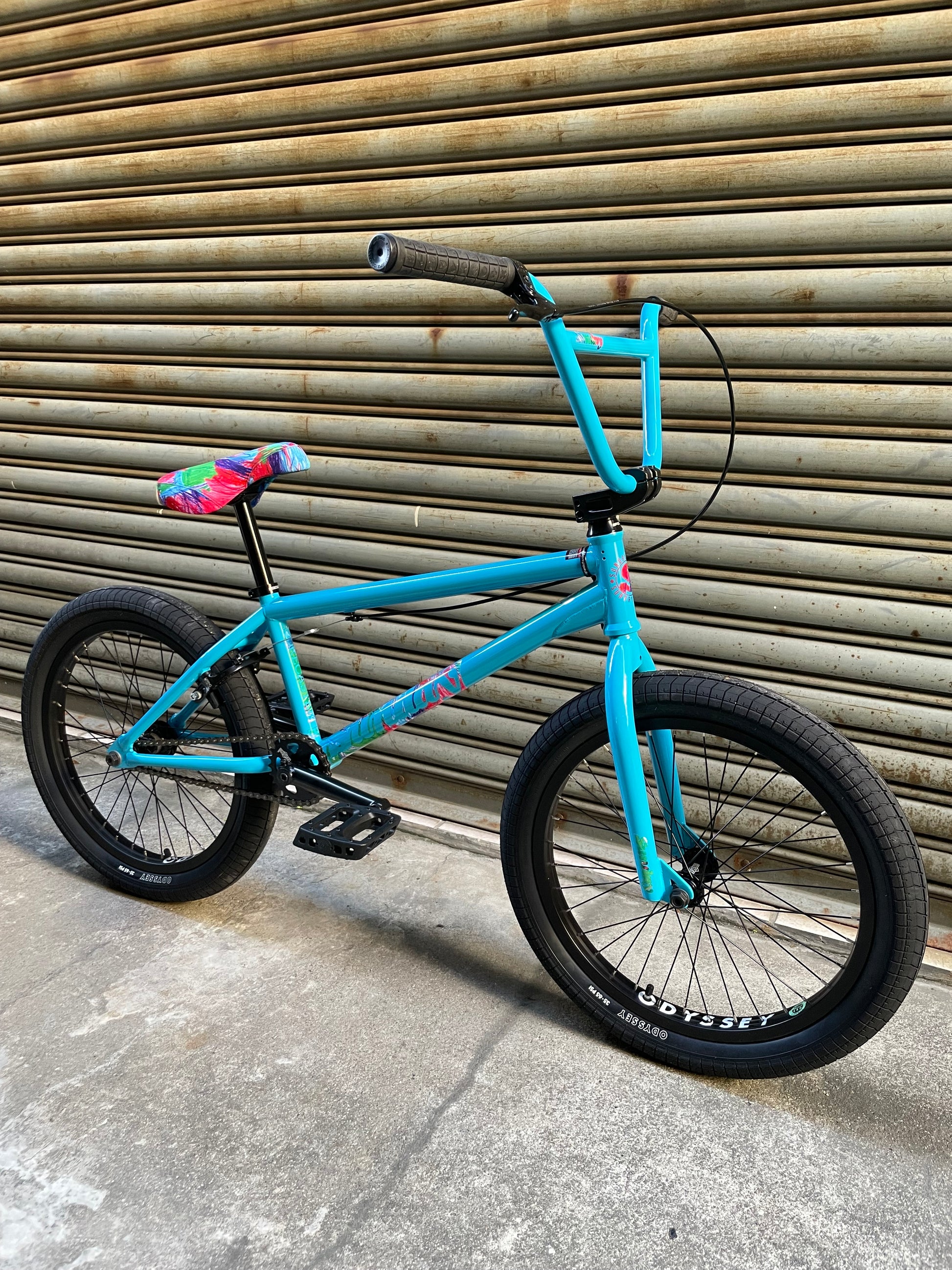

Specification:

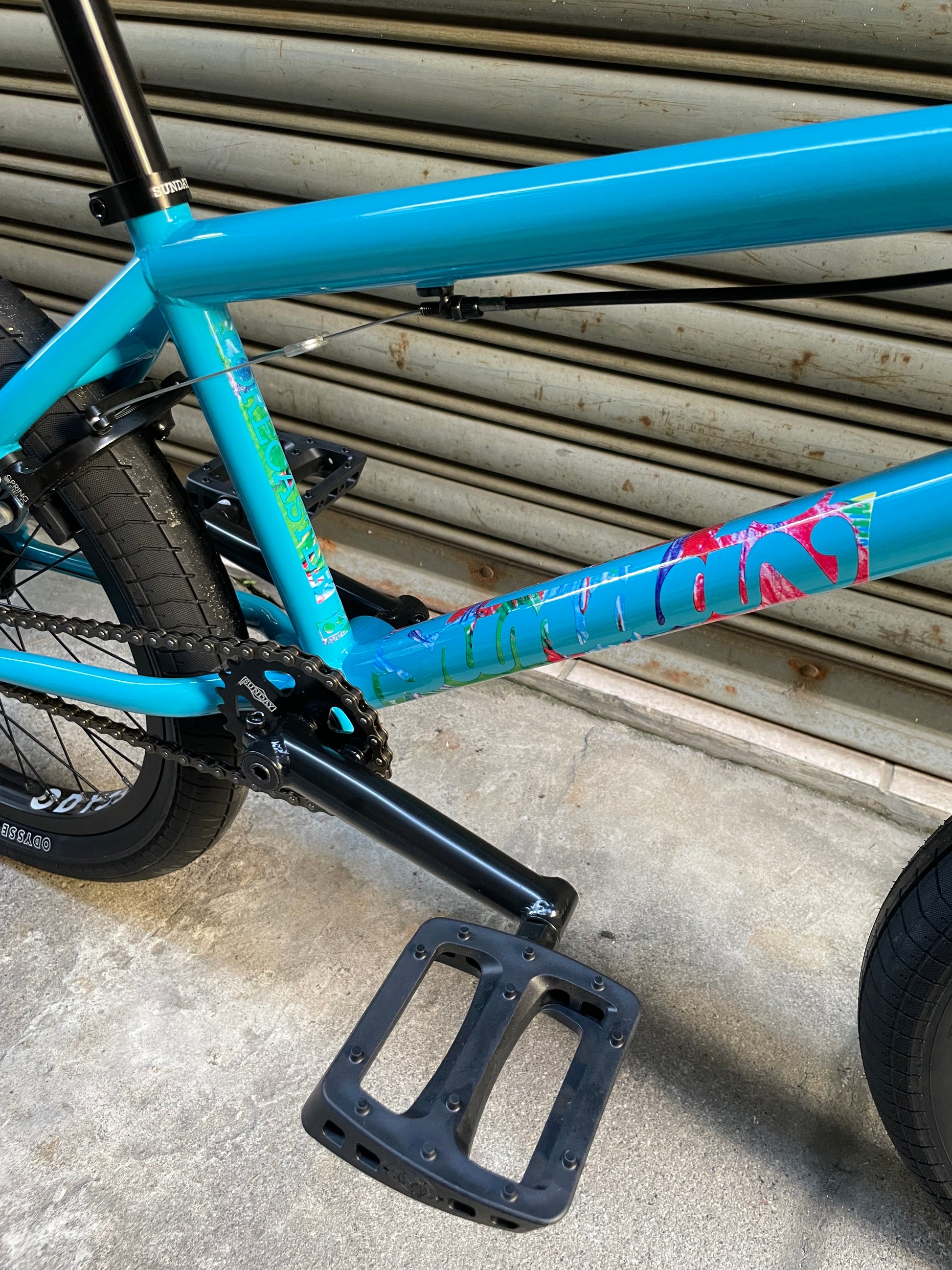

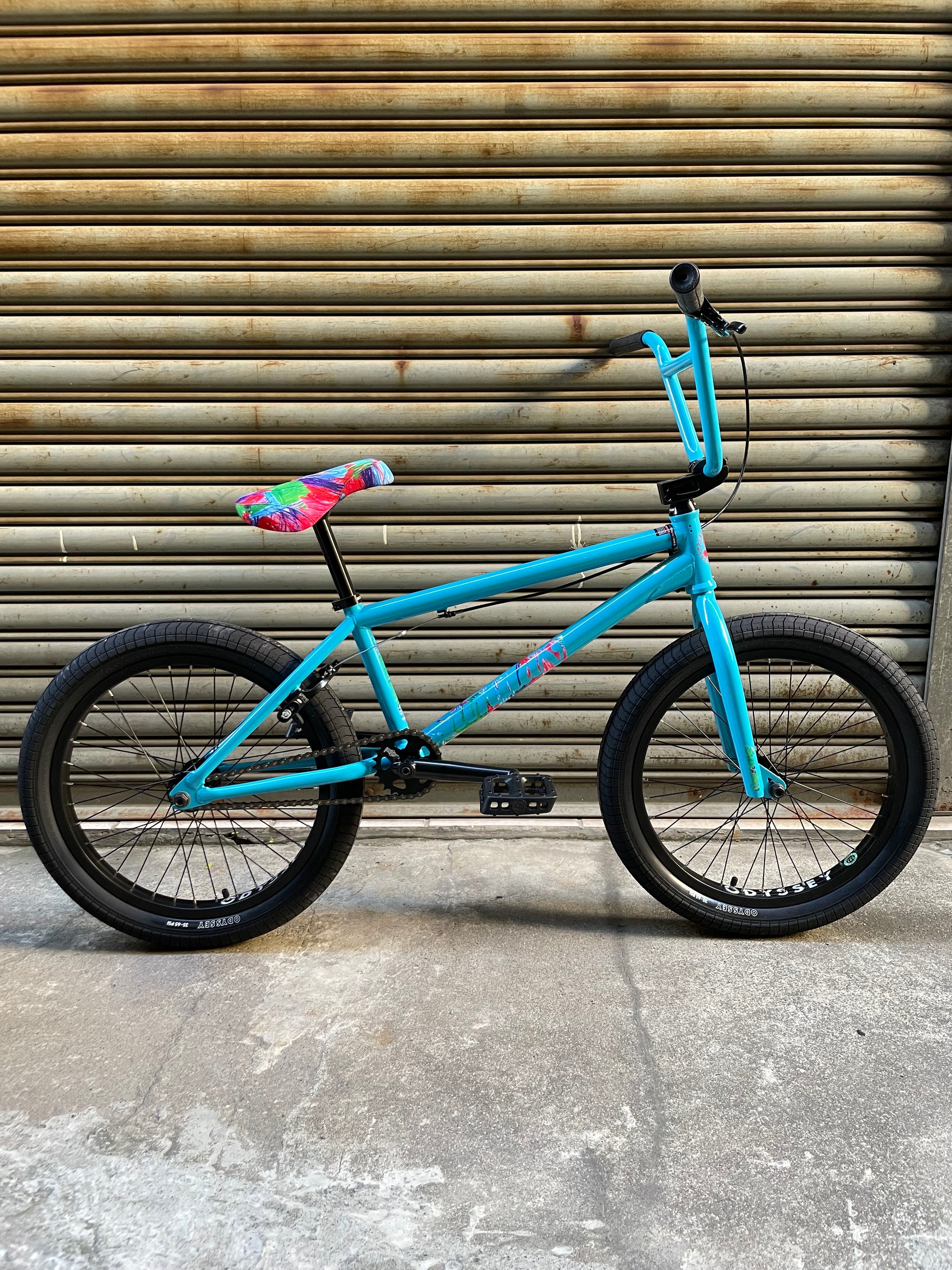

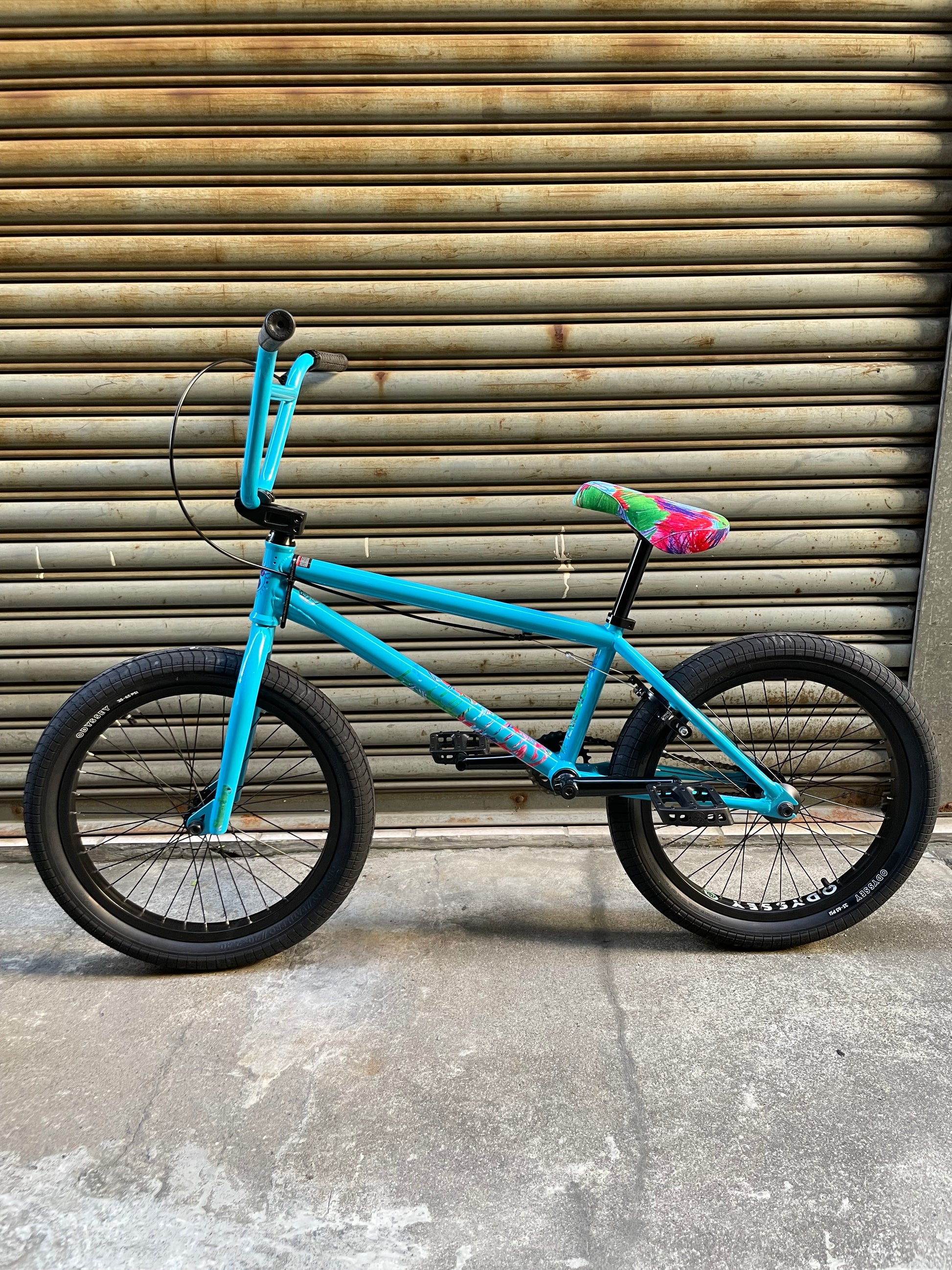

Frame: Sunday Forecaster, 20.5" top tube, 100% Cr-Mo Chrome-molybdenum steel frame with removable brake mounts
Fork: Sunday Forecaster

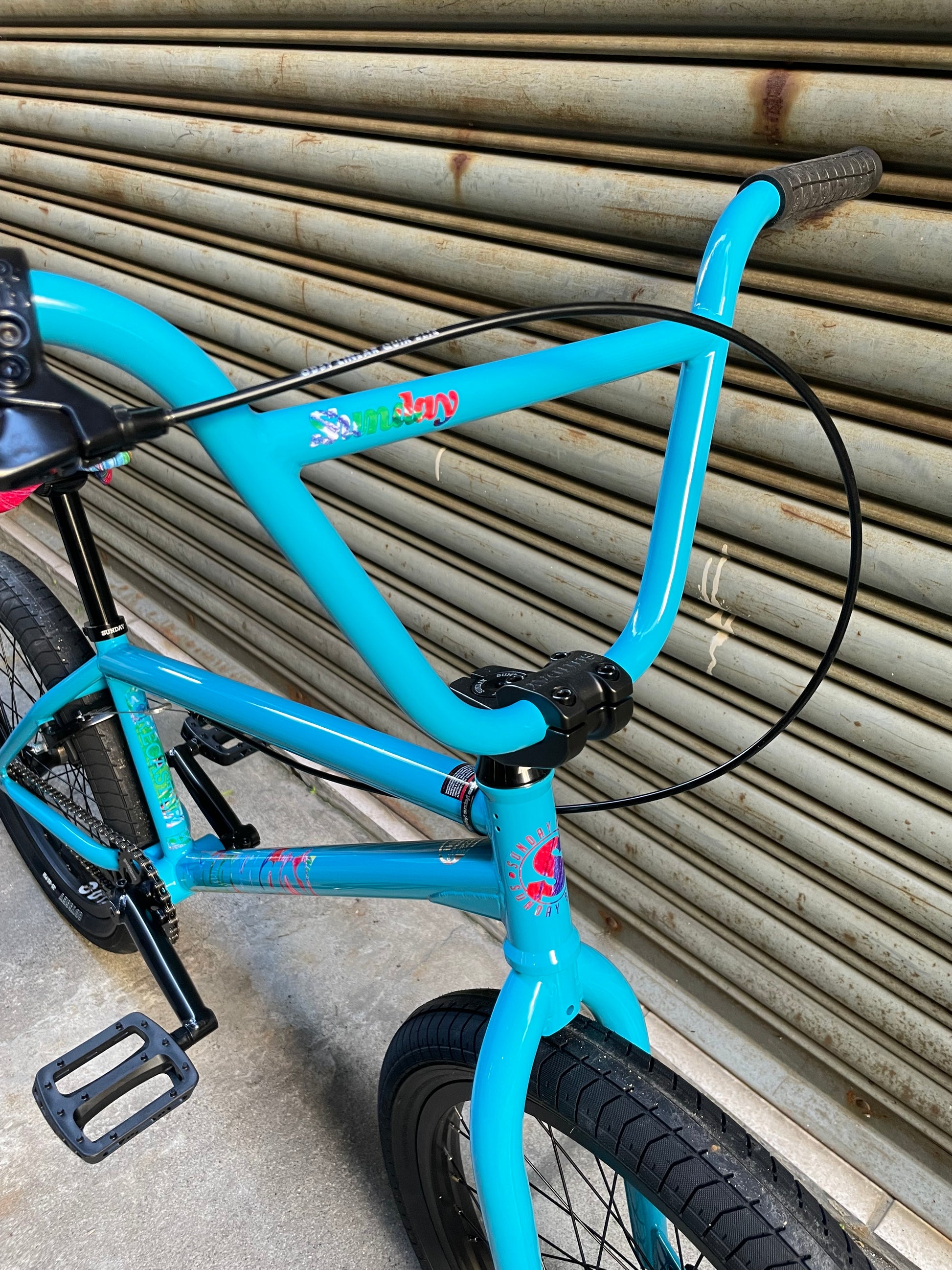

Handlebar: Sunday, 2-piece

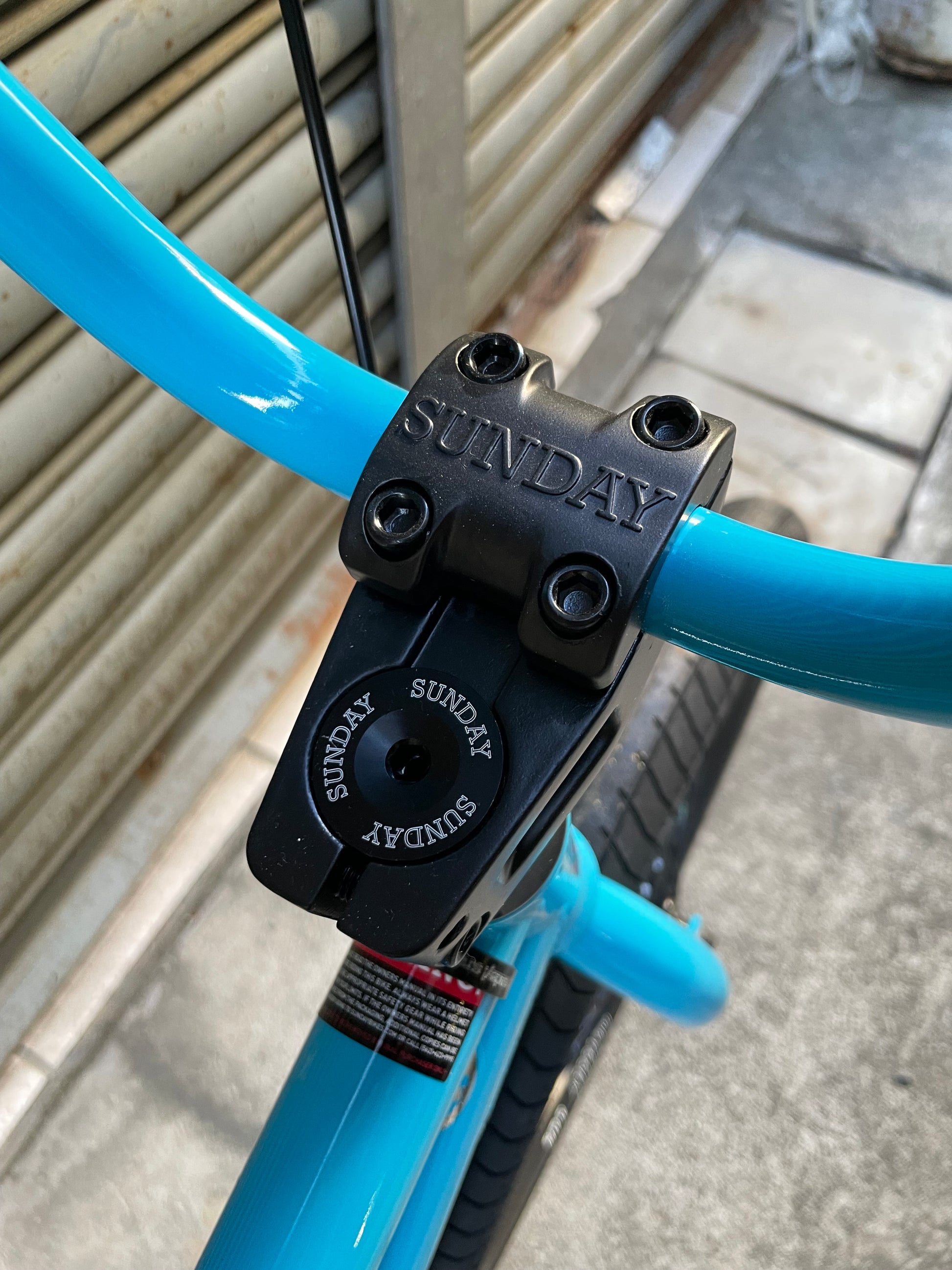

Stem: Sunday Freeze top load lockable stem, 48mm reach
Headset: FSA integrated, 1-1/8"
Front fork top cap: Sunday M16,
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic

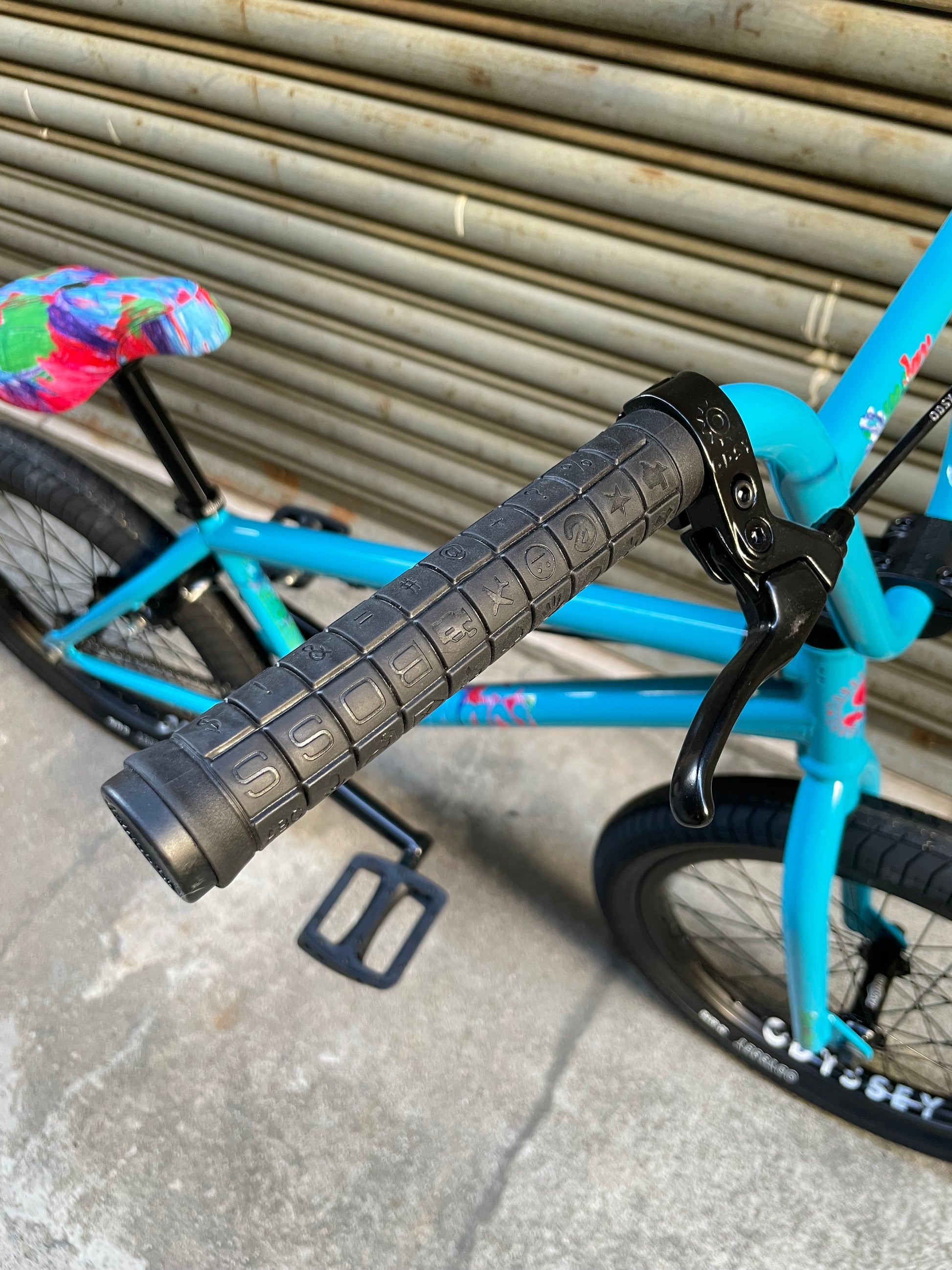

Grips: Odyssey Keyboard v2 Grips

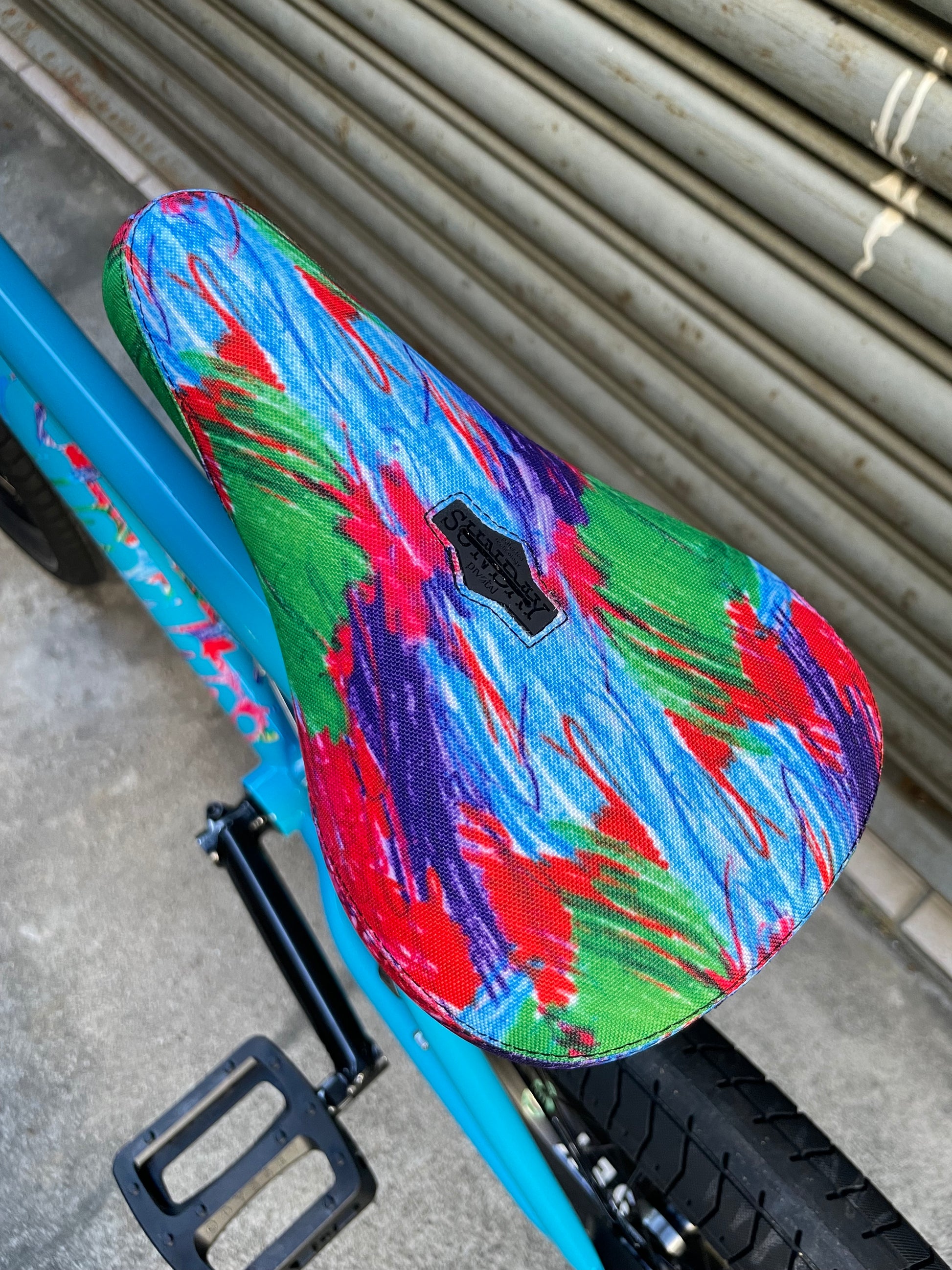

Seat: Odyssey Aaron Ross Seat
Seat Post: Sunday Pivotal
Seat Clamp: Sunday

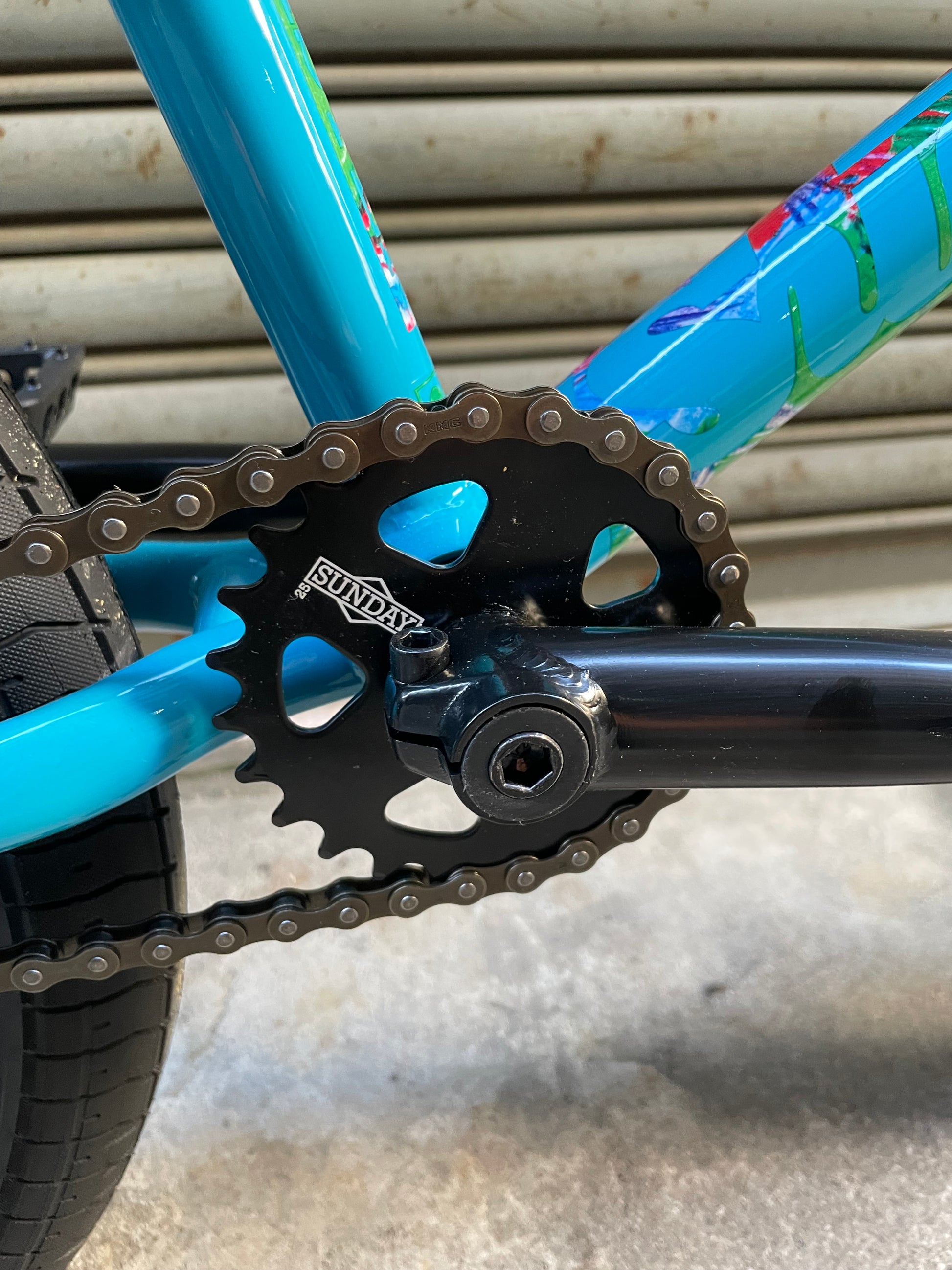

Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 170mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm

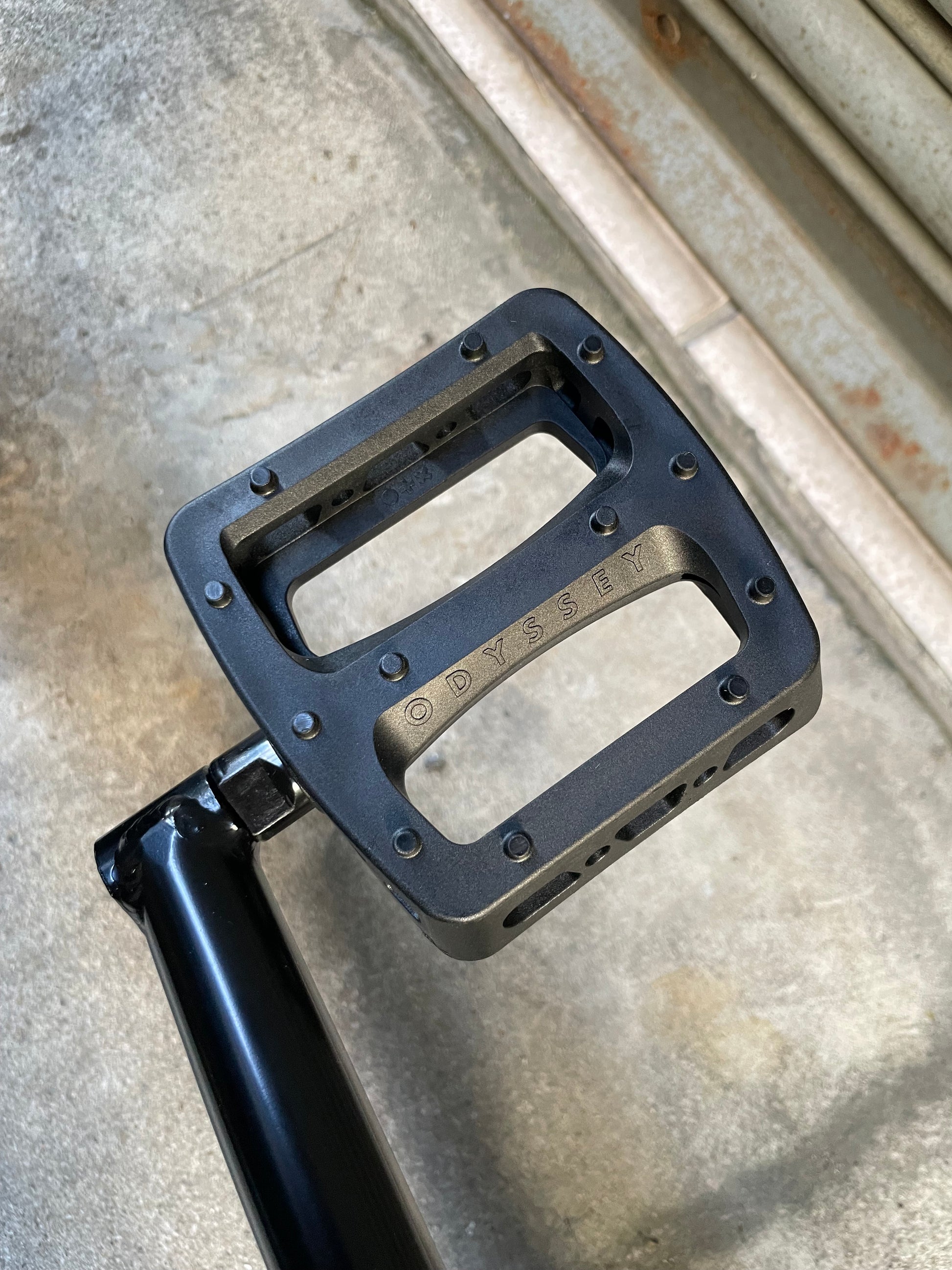

Pedals: Odyssey Twisted PC Pro

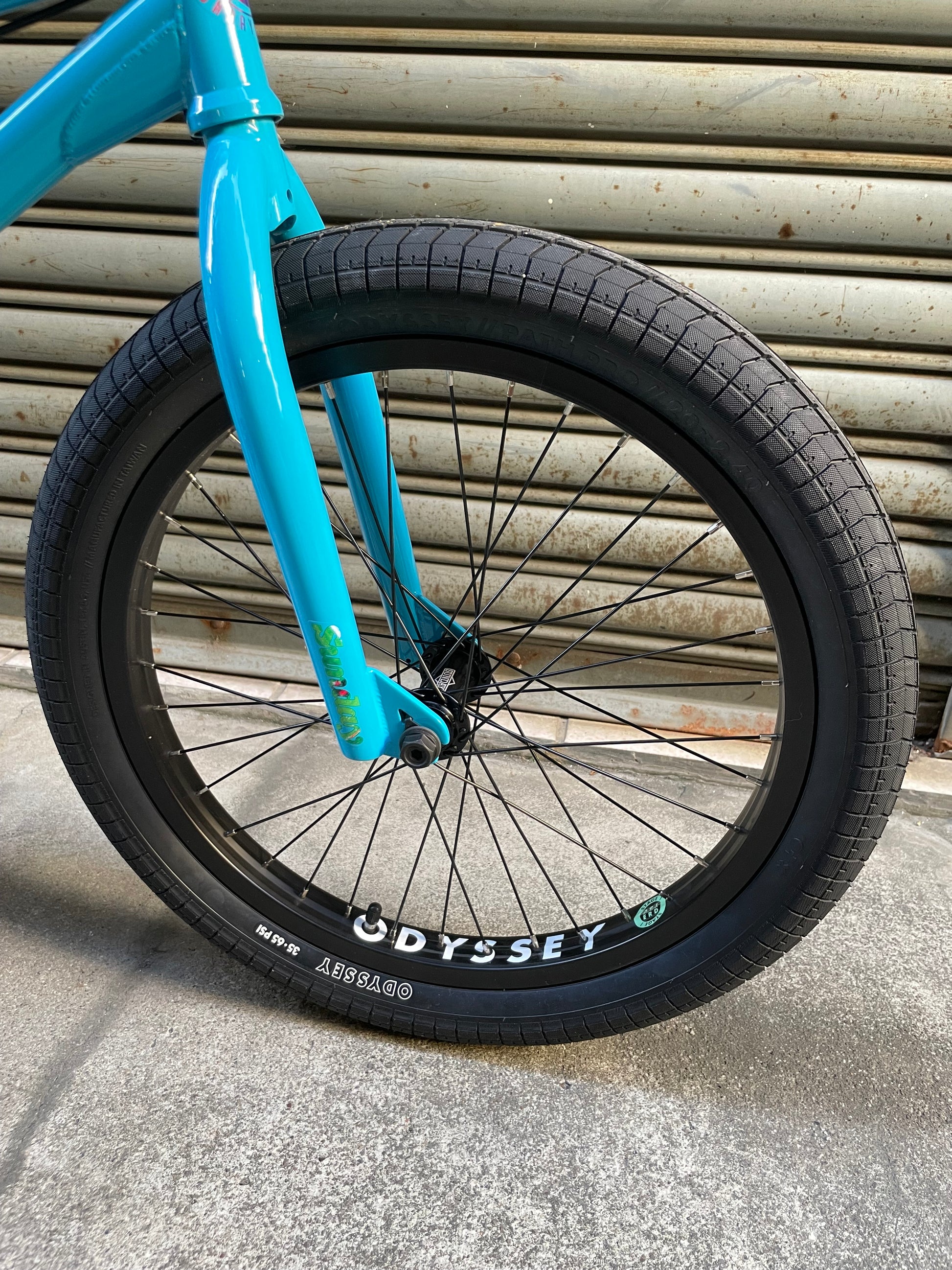

Rims: Odyssey Stage 1, 20", 36H
Front Hub: Sunday, 36H, sealed bearing 3/8" internal locking

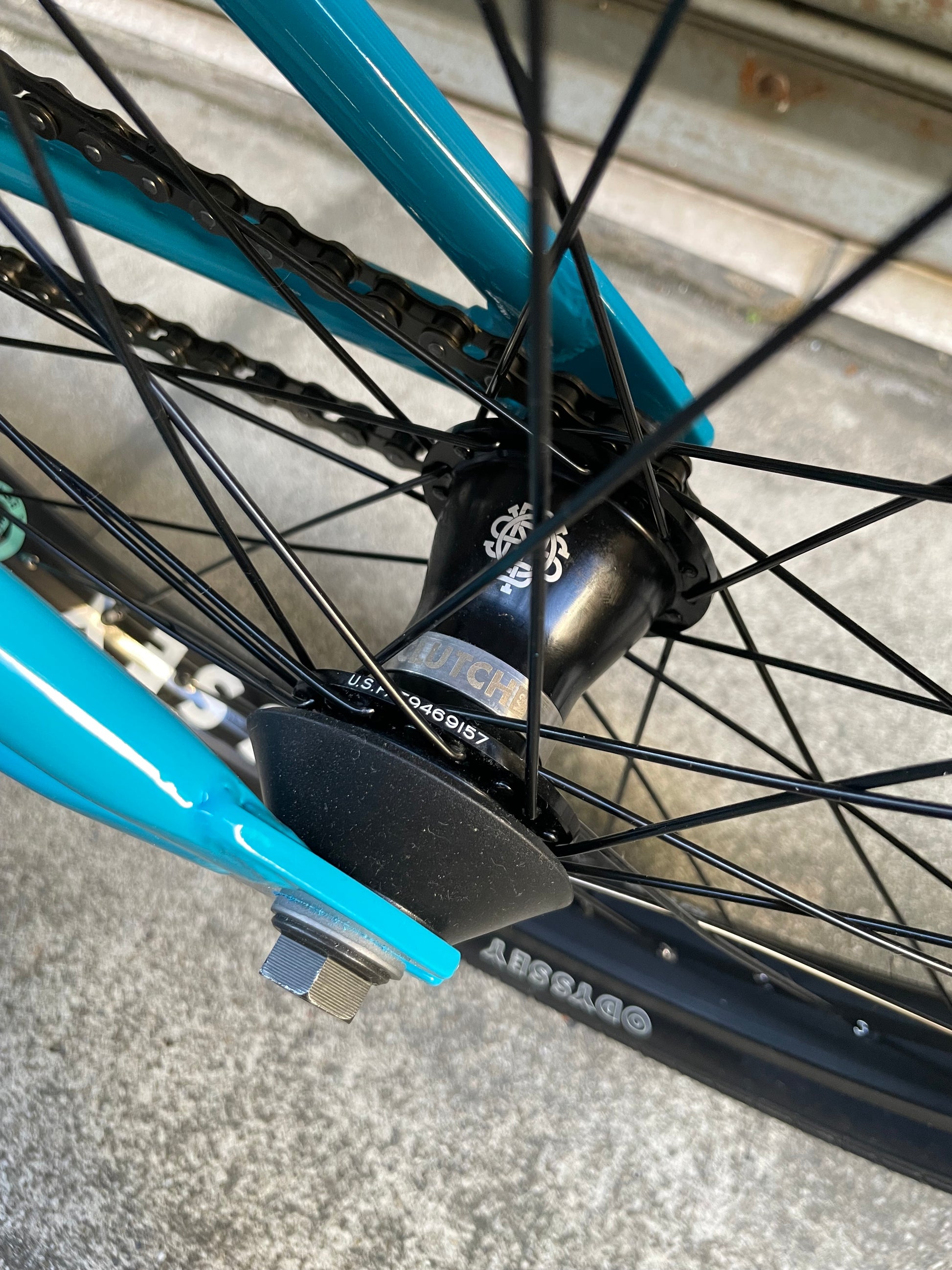

Rear Hub: Odyssey Clutch V2 Freecoaster RHD
WireSpokes: 14G steel, black
Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Weight: 12.15kg (with brakes)
Origin: Made in Taiwan
Frame geometry:
Top tube length (T/T Length): 20.5"
Head tube angle (H/T Angle): 75.5°
S/T Angle: 71°
CS Length: 13.2-13.5”
BB Height: 11.7"
Standover: 9"
*Recommended height:
21" - 175cm - 190cm
20.75" - 165cm - 180cm
20.5" - 160cm - 175cm
20" - 150cm - 165cm
18" - 122cm - 145cm
16" - 95cm - 125cm
Handle specifications:
Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°
